保溫截止閥/BJ41W
更新：2017-09-13 17:24:41??????點擊：
- 品牌：???瑞奇閥門
- 型號：???BJ41W
-
產品介紹
|
型號
|
公稱壓力PN(MPa)
|
試驗壓力
|
適用溫度
|
適用介質
|
保溫套壓力(MPa)
|
|
|
殼體
|
密封
|
|
|
|
|
|
|
BJ41W-16P、R、C
|
1.6
|
2.4
|
1.8
|
≤350
|
硝酸類
|
≤1.0
|
|
BJ41W-25P、R、C
|
2.5
|
3.8
|
2.8
|
≤350
|
硝酸類
|
≤1.0
|

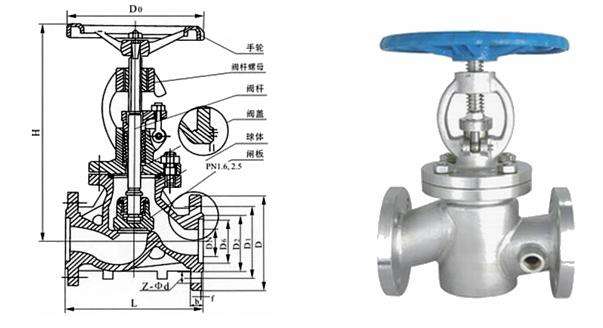

尺寸(II型法蘭大一級)
|
型號
|
公稱通徑DNmm
|
尺寸
|
|
|
|
|
|
|
|
|
|
L
|
D
|
D1
|
D2
|
B-f
|
Z-Φd
|
H
|
Do
|
2-G
|
|
|
|
W
P
BJ41
-16
R
H
C
|
15
|
130
|
95
|
65
|
45
|
16-2
|
4-14
|
170
|
170
|
3/8
|
|
20
|
150
|
105
|
75
|
55
|
16-2
|
4-14
|
190
|
190
|
3/8
|
|
|
25
|
160
|
115
|
85
|
65
|
16-2
|
4-14
|
205
|
205
|
3/8
|
|
|
32
|
180
|
135
|
100
|
78
|
18-2
|
4-18
|
270
|
270
|
1/2
|
|
|
40
|
200
|
145
|
110
|
85
|
18-3
|
4-18
|
310
|
310
|
1/2
|
|
|
50
|
230
|
160
|
125
|
100
|
18-3
|
4-18
|
358
|
358
|
1/2
|
|
|
65
|
290
|
180
|
145
|
120
|
18-3
|
4-18
|
373
|
373
|
1/2
|
|
|
80
|
310
|
195
|
160
|
135
|
20-3
|
8-18
|
435
|
435
|
1/2
|
|
|
100
|
350
|
215
|
180
|
155
|
20-3
|
8-18
|
500
|
500
|
1/2
|
|
|
125
|
400
|
245
|
210
|
185
|
22-3
|
8-18
|
614
|
614
|
1/2
|
|
|
150
|
480
|
280
|
240
|
210
|
24-3
|
8-23
|
674
|
674
|
1/2
|
|
|
200
|
600
|
335
|
295
|
264
|
26-3
|
12-23
|
818
|
818
|
1/2
|
|
|
250
|
730
|
405
|
355
|
320
|
30-3
|
12-25
|
949
|
969
|
1/2
|
|
精心締造,優質品質!!! m.bwft.cn 瑞奇閥門
